ST-260
Stainless Steel Proximity Reader
Description
ST-260:EM format (125KHz)

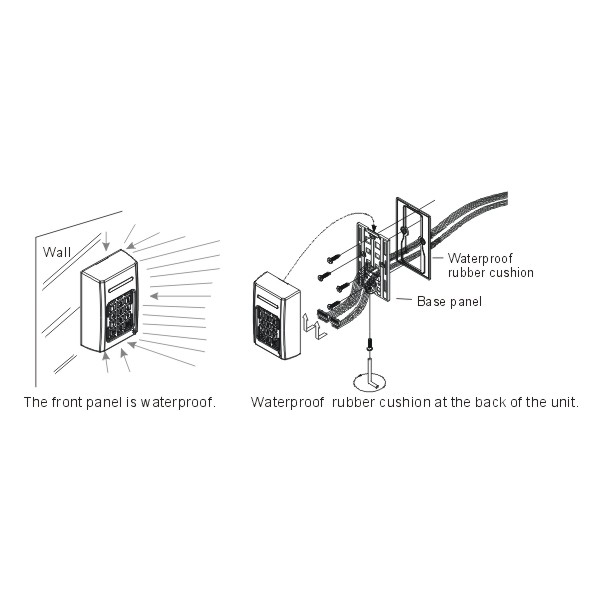

Stainless steel case with multiple waterproof design (Ip62) which is able to mount outdoors indoors.
Incorporate with security system to set or disable. A set of indicator light (Orange) is available for user to set.
Extra large bar size indicator light display board with keypad (blue and green). Luminous keypad button to provide clear instructions in the dark.
Detection range: Unit is being tampered, door is opened illegally, under duress, anti-theft detection and push button door open.
2,000 cards capacity, 8-digit card number.
8 sets of door opening passwords.
Tamper switch available. Alarm will be activated when it is being tampered or moved with force.
Trespassing or enter without card will activate the alarm.
Anti-duress function available and user is able to enter specific password to send help signal.
Special memory to prevent loss of data when power cut occurred.
Single (proximity or card number entry) or batch registration and cards are able to issue in advance.
Four door opening methods: Password, proximity card, proximity card plus password, password or proximity card.
Maximum proximity distance: 1~3CM (125KHz) (depending on types of card).
Frequency : 125 KHz .
Power supply : DC12V, Power consumption: 130mA (standby); 180mA (operation).
Operation temperature: 0~60? ; Humidity: 85%Rh max.
Dimensions : 115L x 70W x 30.5H (mm).
Weight : 315g
