BR-100
Surface Mount Bracket
Description
To be used with SL-100 Dead Bolt Lock.
Suitable for all types of 90? or 180? door.
Sturdy built for durability.

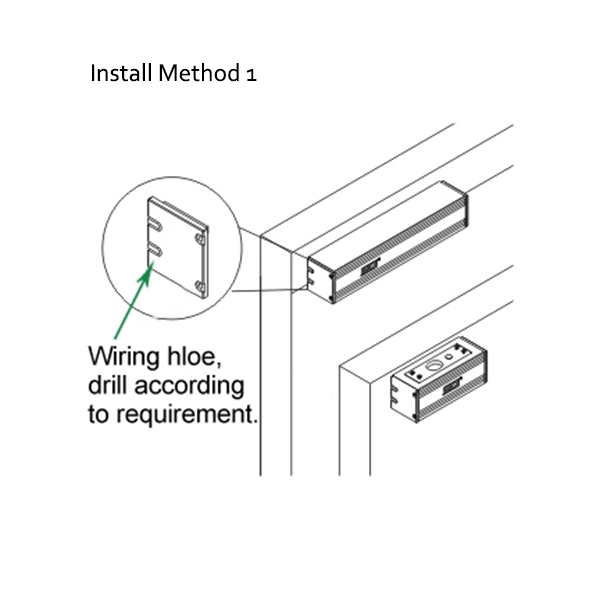

Simple installation without knocking any holes out.

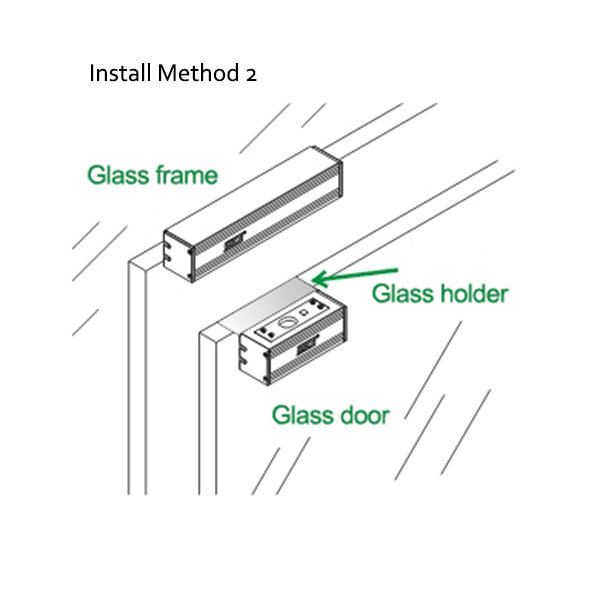

Able to integrate with UB-100 glass holder.
Dimensions: 230 x 45 x 46(mm).
Weight: 590g.
Optional of BR-100C Bracket available.

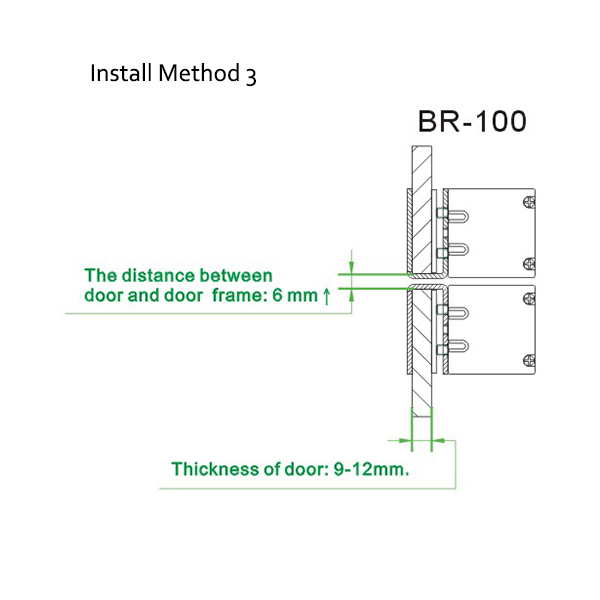

Surface mount the bracket when unable to drill hole in the door frame.
Glass door.
Thickness of door : 9mm – 12mm.
The distance between door and door frame at least 6 mm
