SW 80AB

2018-12-04T11:28:06+00:00ธันวาคม 4th, 2018|Button & Switches|

.

Exit Push Button Series: SW Mechanical Series
Description

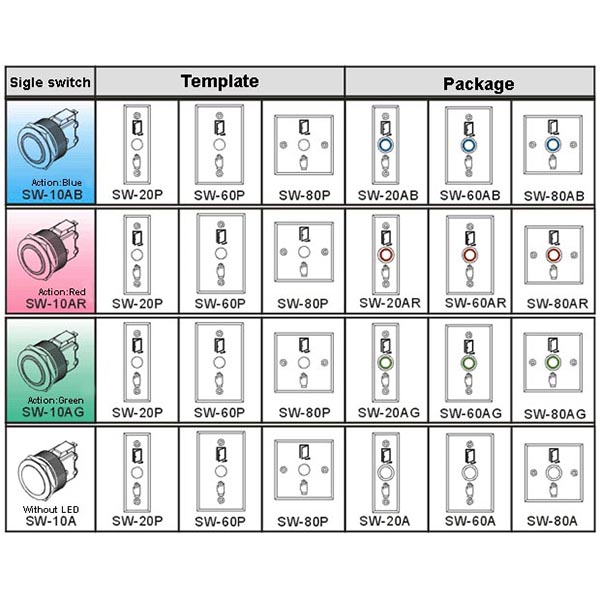

SW -80 AB
(Type) (Panel) (Indicator lights)
Type:
SW as mechanical switch.
SI? as infrared proximity.
Specifications:
10 as single switch without panel.
20 as panel with dimensions of 115x39x26(mm).
60 as panel with dimensions of 115x70x26(mm).
80 as panel with dimensions of 86x86x26(mm).
Indicator lights:
R as red light
B as blue light
G as green light
Example: SW-20AB as door frame panel with mechanical switch and blue indicator light.

Features

Mechanical series:
Strong and durable SUS304 stainless steel button and panel design which resists strong acid and alkali.
Suitable for hollow door frame and electrical box use.Voltage of DC12V?20% for LED.
The diagram shows world universal use.
The front of the detector is waterproof design with IP65 and above.
Custom-made micro-switch according to user’s requirements (such as waterproof or currents).
Operation temperature range: -20?~ 60?. Humidity 85%Rh max.
Mechanical life:1,000,000 cycles.
Contact rating: 5A@250VAC N.O./N.C. Output.
